Chrome Plated Rod
Piston Rod
Piston Rod Specification |
|
Material: |
CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc. |
Diameter: |
Φ 6-500mm |
Length: |
max 13m |
Chrome layer: |
20 micron (min) to 100 micron |
Hardness of the chrome layer: |
850 HV (min) - 1150 HV |
Roughness: |
Ra <= 0.2u |
Straightness: |
<= 0.2/1000 |
Diameter tolerance: |
ISO f7 / f8 / h8 / g6 |
Roundness: |
Half of the tolerance ISO f7 |
Delivery condition: |
Hard Chrome Piston Rod ( HRC 15-20) |
Quenched & Tempered (Q+T) Rod (HRC 28-32) |
|
Induction Hardened Rod (HRC 55-62) |
|
Q+T Induction Hardened Rod (HRC 60-65) |
|
Corrosion resistance: |
Test in natural salt spray according to ASTM B 117-96 hours. |
Packing: |
Anti-rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case. |
Product Show:

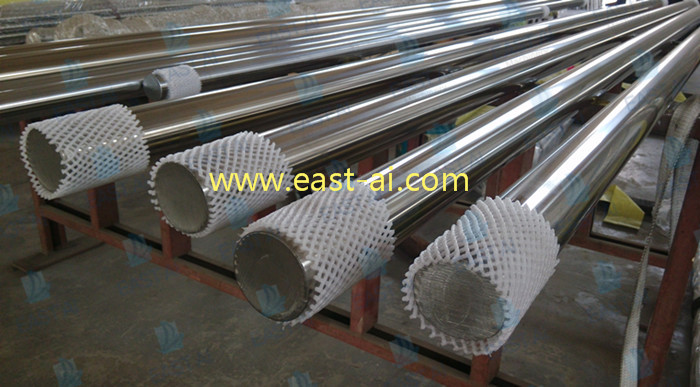

Hard Chrome Plated Piston Rod

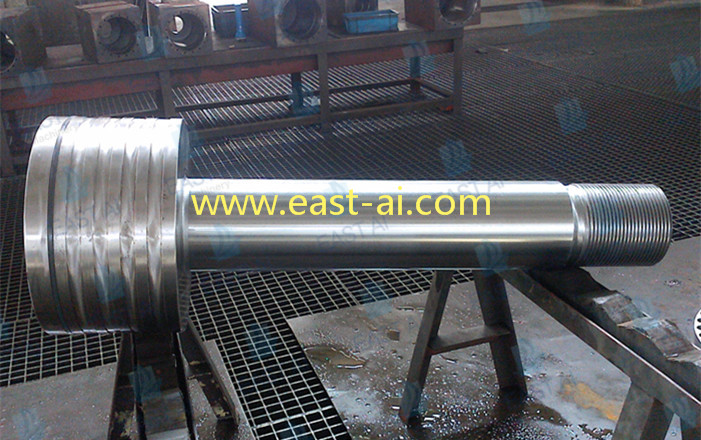

Machined Piston Rod for Hydraulic Cylinder
Hollow Piston Rod for Telescopic Cylinder
Hollow Chrome Bar
